Special purpose trucks are only as reliable as the body bolted to the chassis, so we build the chassis and the body in the same group and match the hydraulic, refrigeration and pumping systems to the duty cycle.
Specifications below are our standard build. Engine, axle ratio, body size, colour and drive side can all be changed — tell us what you need.

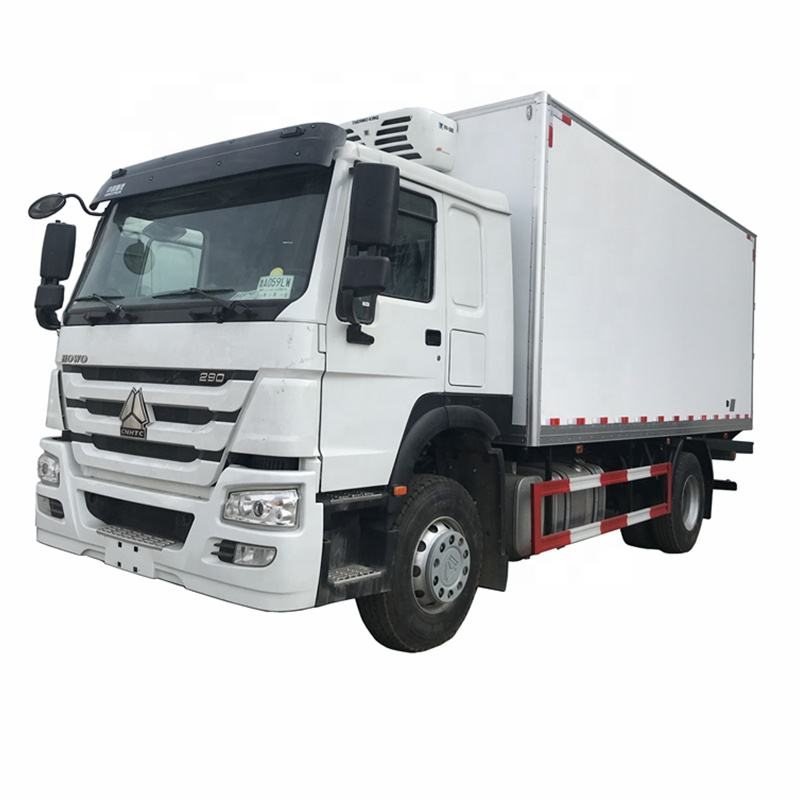

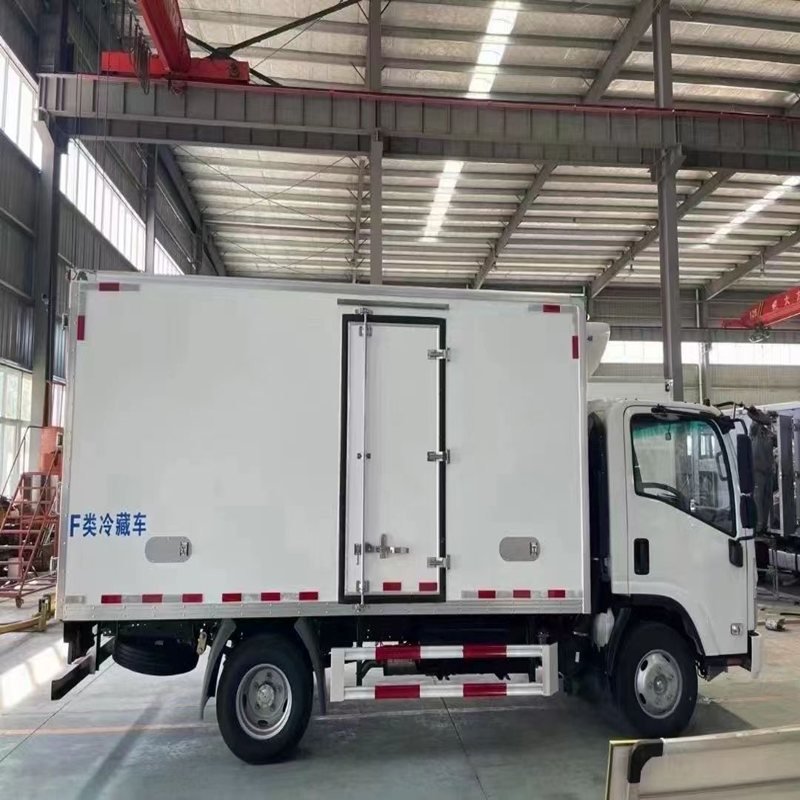

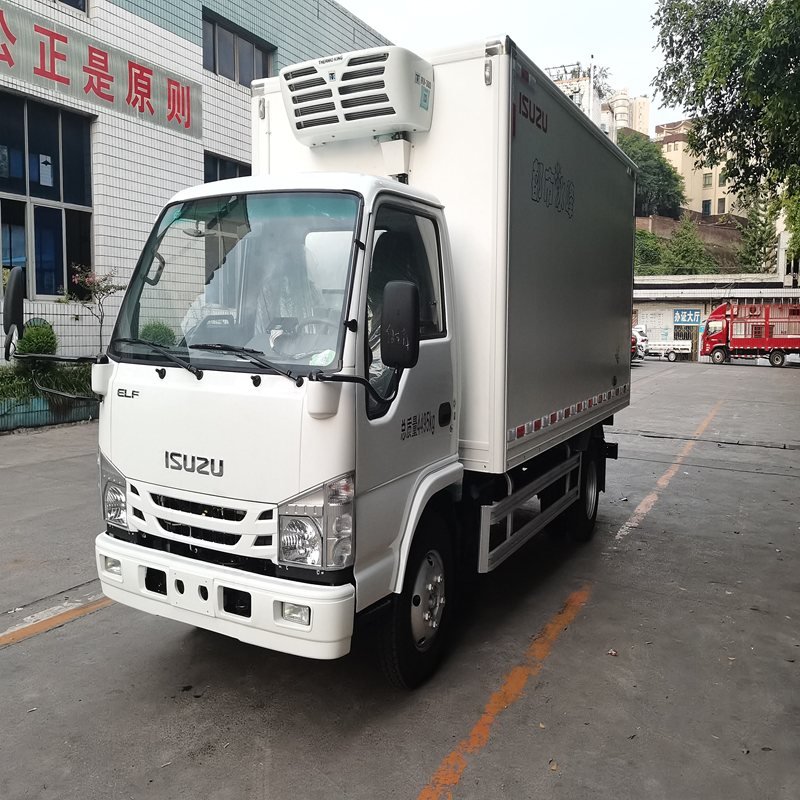

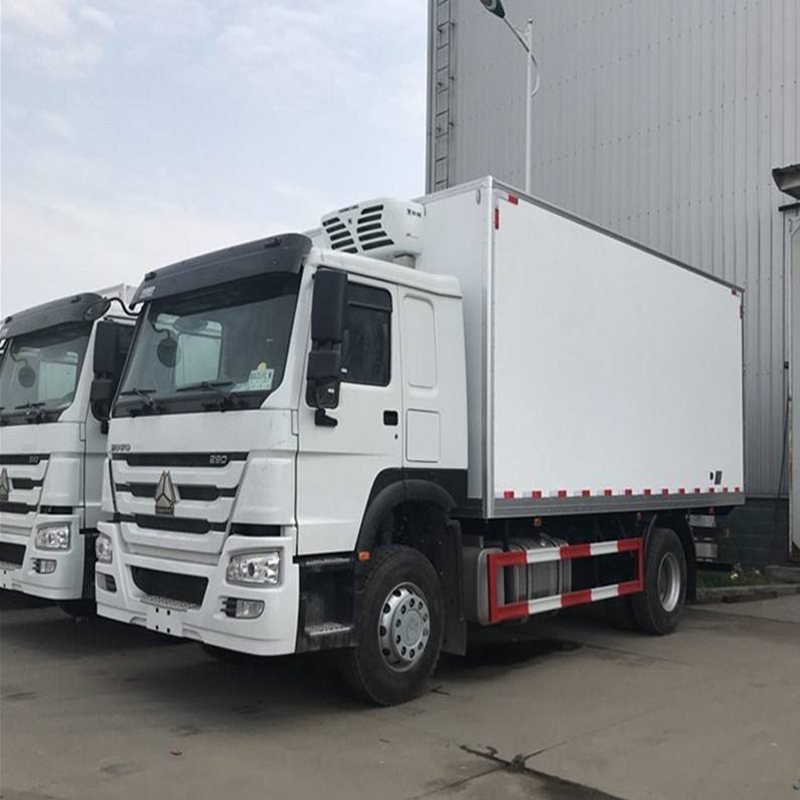

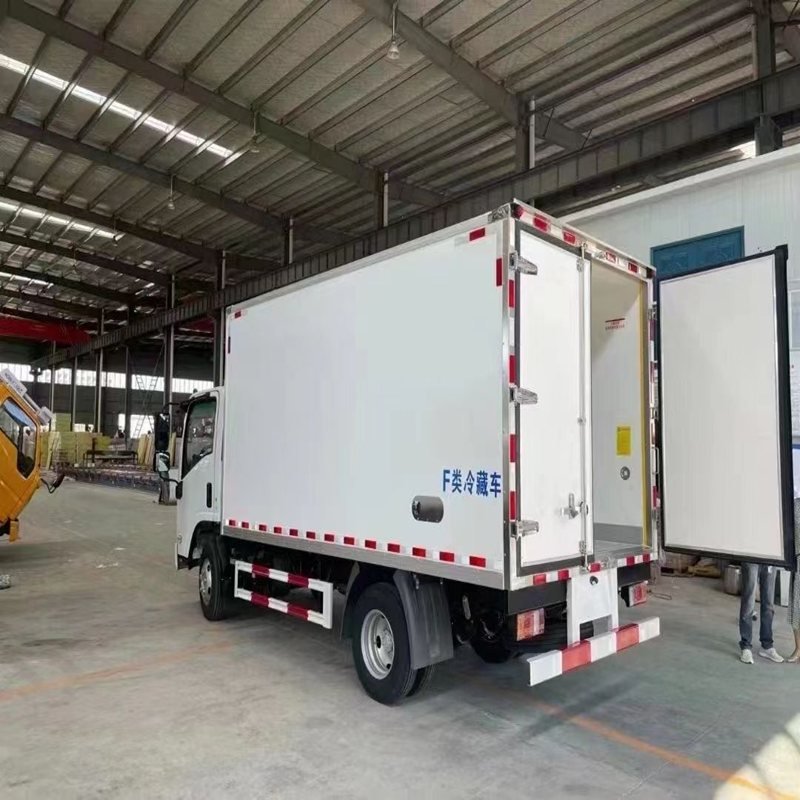

Insulated reefer body with a Thermo King or Carrier unit and 80 mm PU panels — built for cold chain distribution.
| Chassis | HOWO / SINOTRUK 4x2 or 6x4 |
|---|---|
| Box size | 4000 – 9600 mm long |
| Panel | 80 mm polyurethane, fibreglass skin |
| Reefer unit | Thermo King / Carrier / Kingtec |
| Temperature | −18 °C to +5 °C |
| Floor | Aluminium T-floor with drain |
| Door | Rear double door, stainless hardware |
| Options | Side door, meat rail, shelving |
General purpose box body truck with a corrosion-treated steel or aluminium box and a wide range of door options.
| Chassis | HOWO / SHACMAN 4x2, 6x2 or 6x4 |
|---|---|
| Box length | 4200 – 9600 mm |
| Box material | Corrugated steel or aluminium |
| Door | Rear swing or roller shutter |
| Floor | Anti-slip steel or plywood |
| Interior | LED lighting, cargo rails |
| Colour | Custom RAL, logo printing available |
| Tyre | 10.00R20 |

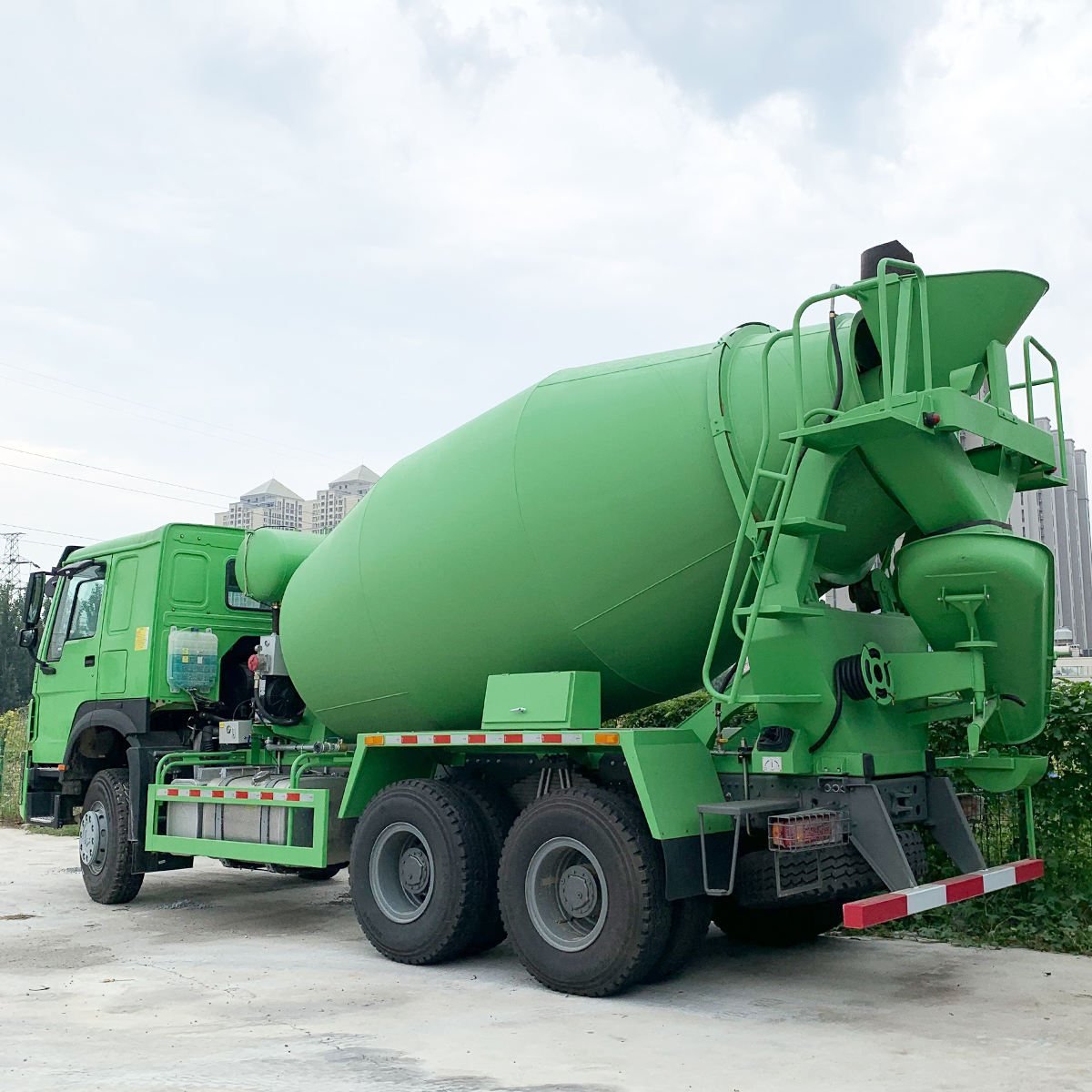

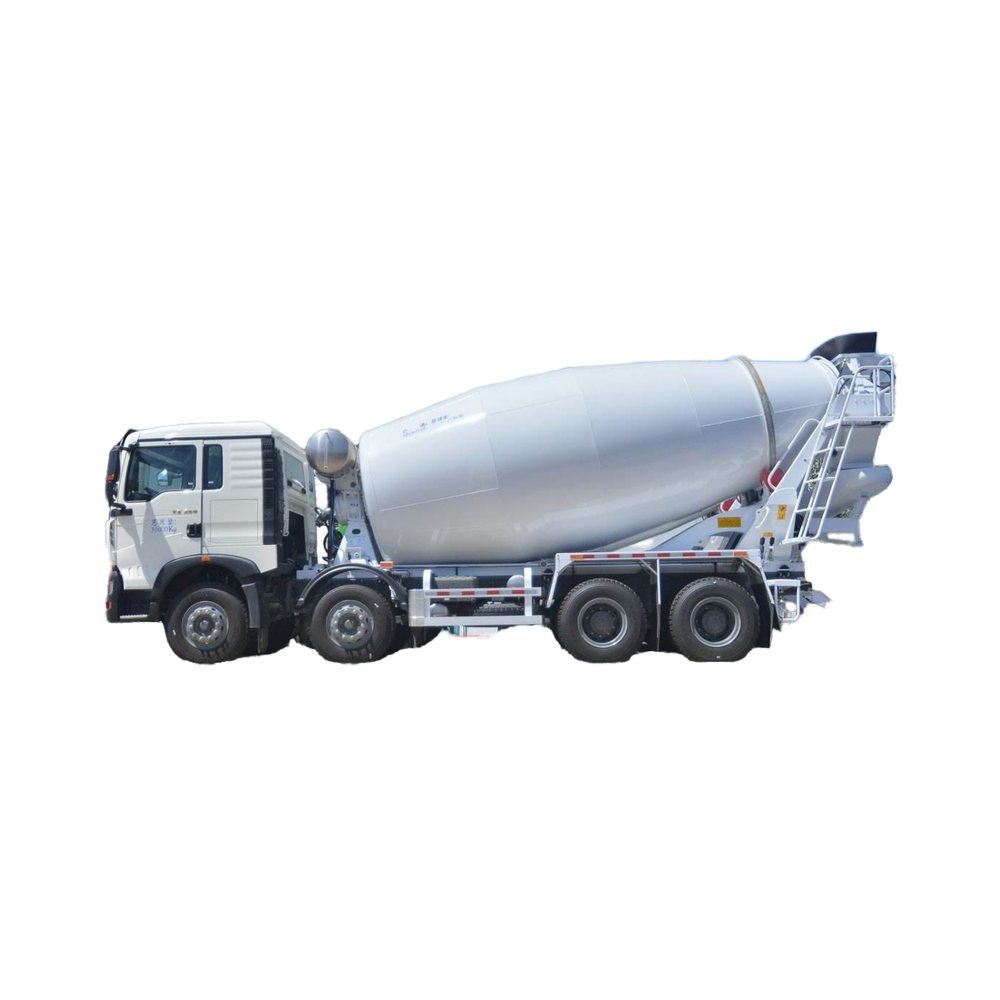

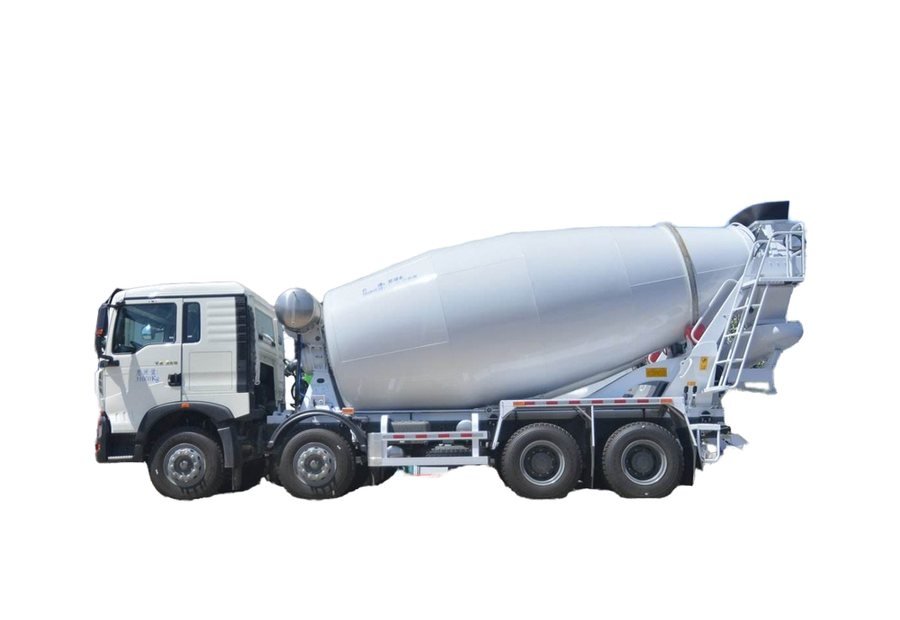

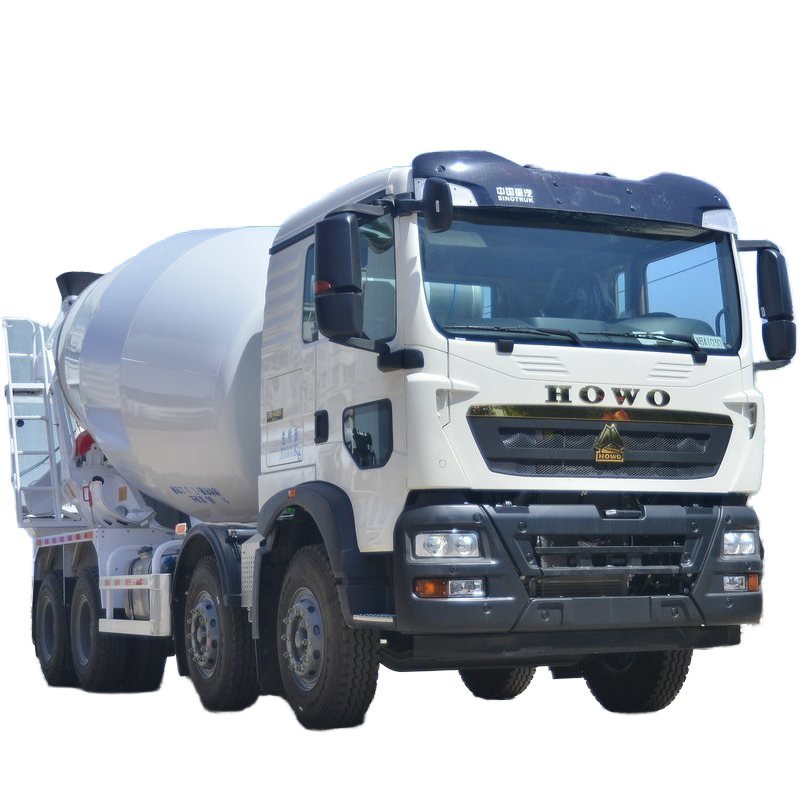

HOWO-mounted mixer with a wear-resistant drum, imported hydraulic pump and motor, and a reliable water supply system.
| Chassis | HOWO 6x4 / 8x4 |
|---|---|
| Drum capacity | 8, 10, 12, 14, 16 cbm |
| Engine | WD615.47 371 HP / MC13.40 400 HP |
| Hydraulic pump | PMP / Sauer / imported |
| Hydraulic motor | PMP / Sauer |
| Reducer | Bonfiglioli / Chinese |
| Drum steel | 16 Mn wear resistant |
| Water tank | 400 L with pump |

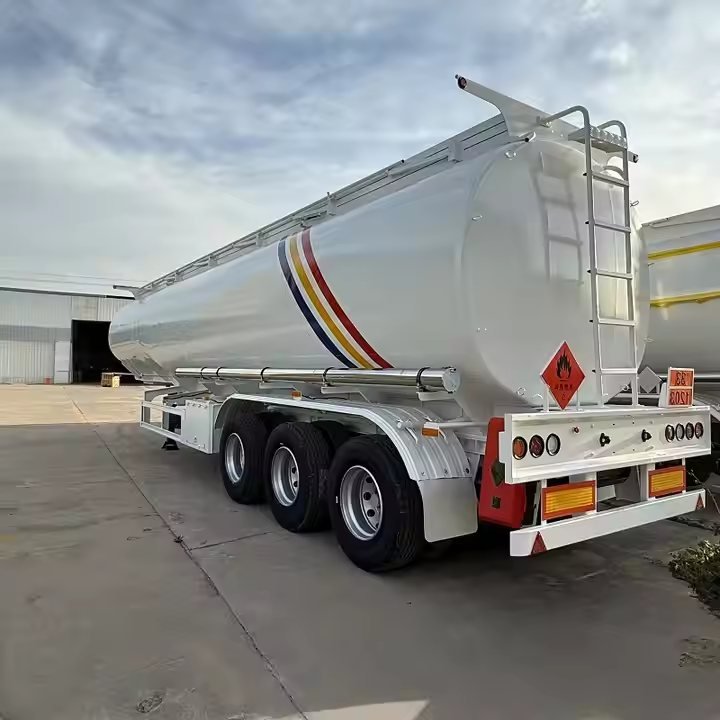

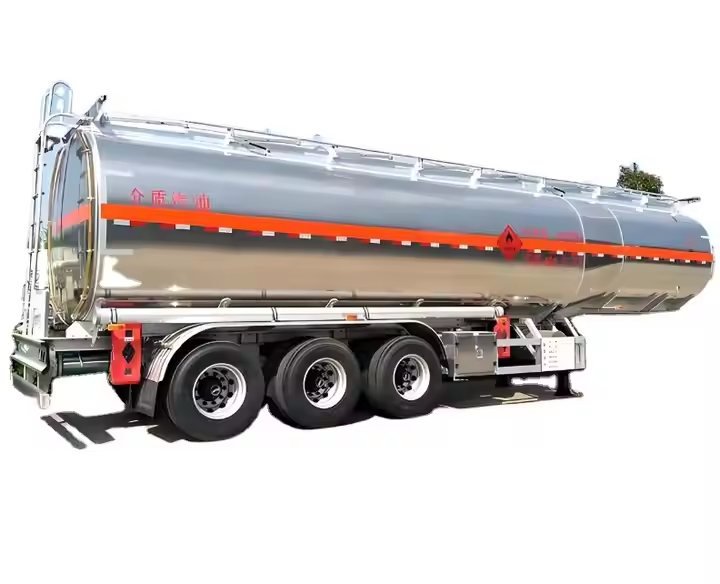

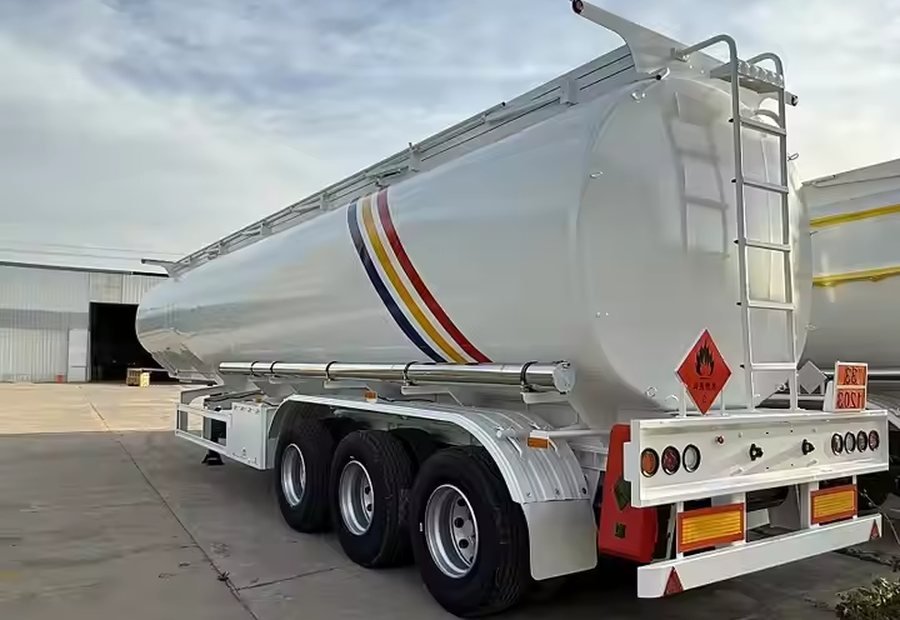

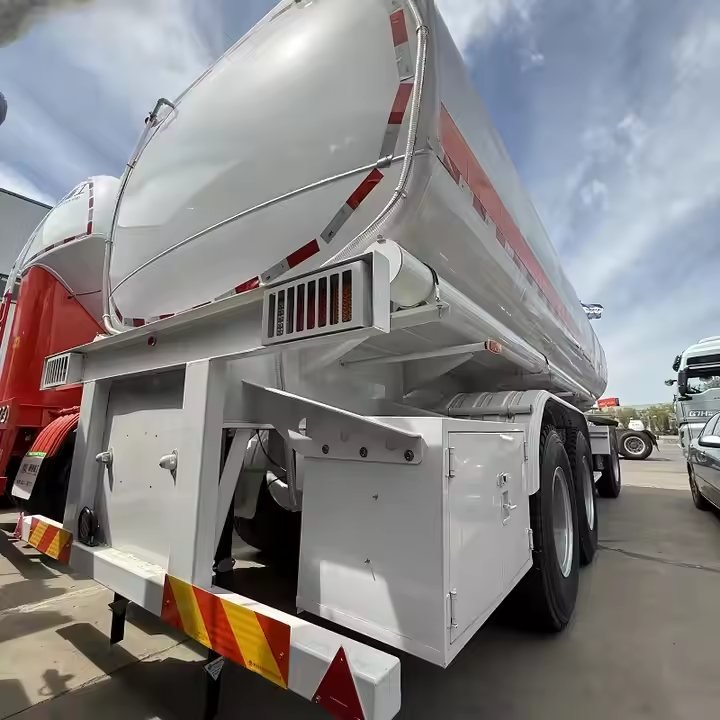

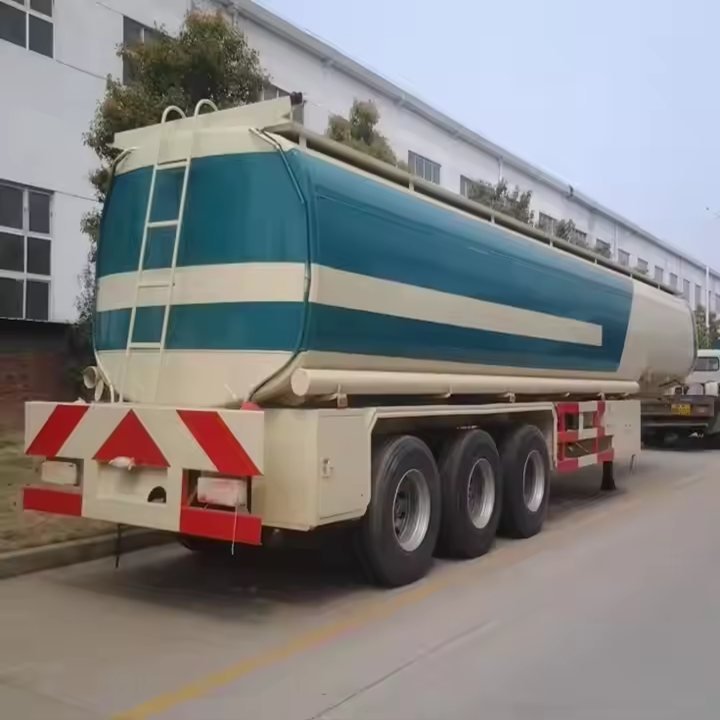

Carbon steel or stainless steel fuel tanker trailer with anti-wave baffles, bottom loading and vapour recovery options — hauled by any 6x4 tractor unit.
| Type | Fuel tanker semi trailer |
|---|---|
| Tank capacity | 35,000 – 50,000 L |
| Tank material | Q235B carbon steel / 304 stainless |
| Shell thickness | 5 – 6 mm |
| Compartments | 2 – 5, with anti-wave baffles |
| Manhole | Aluminium, 500 mm |
| Valves | Bottom loading, API adaptor |
| Pump | Self-priming, 800 L/min |
Click any photo to open it full size.
We manufacture in our own plant in Liangshan, so you buy at factory cost with no trading margin in between.
WMI code LA9/CRD, registered manufacturer code, ISO quality system and Intertek verified supplier certification.
Container stuffing, RoRo booking, CO, Form A, inspection certificates and full customs paperwork handled in-house.
A dedicated spare parts warehouse keeps axles, brake chambers, valves and lamps on the shelf for fast dispatch.
6x4 and 8x4 tipper trucks with reinforced cargo bodies for mining, construction and quarry haulage.
View range
Heavy duty truck heads from 340HP to 540HP, matched to any semi trailer you operate.
View range
Battery electric trucks with 282 – 422 kWh packs and fast DC charging for urban and short-haul duty.
View range
Towed caravans and off-road hybrid campers with full interior fit-out for leisure and tourism markets.
View rangeSend the specification and your destination port — we will reply with a quotation, shipping options and a production schedule within 24 hours.
