The flatbed and skeletal trailer is the backbone of any haulage fleet, so we build the frame from Q345B I-beam with a fully welded, stress-relieved structure and use components that can be replaced locally.
Specifications below are our standard build. Engine, axle ratio, body size, colour and drive side can all be changed — tell us what you need.

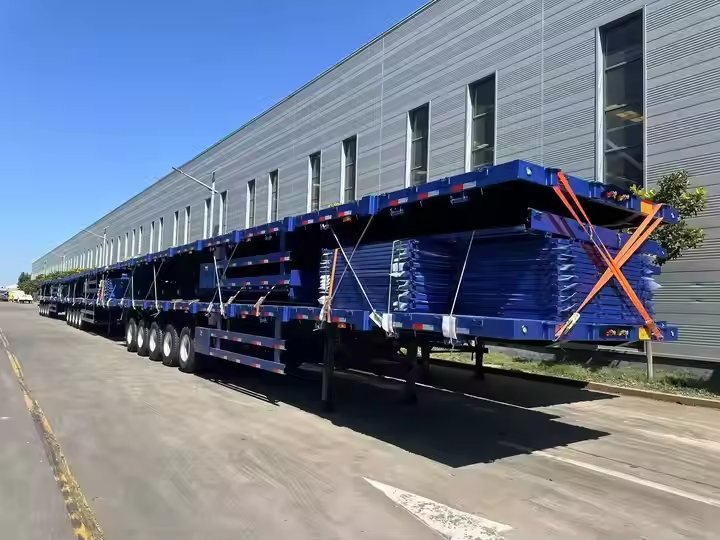

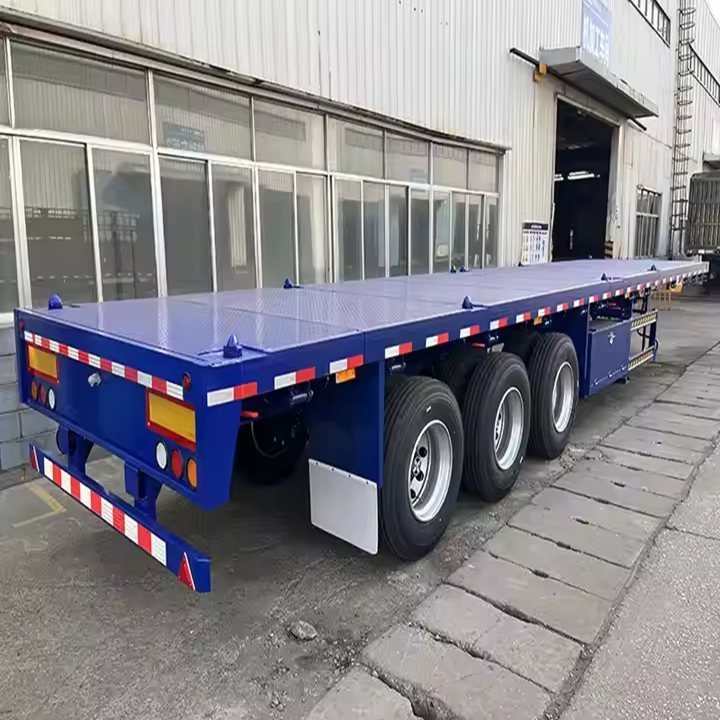

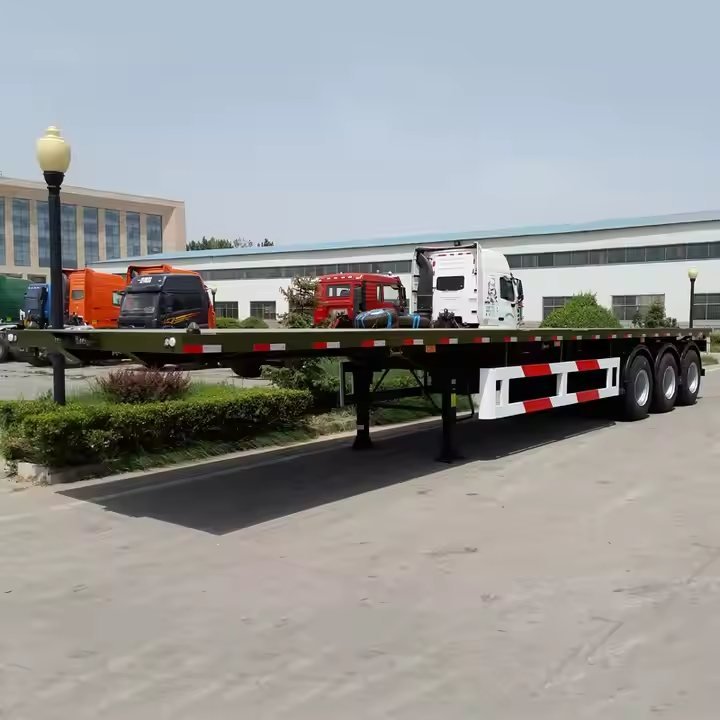

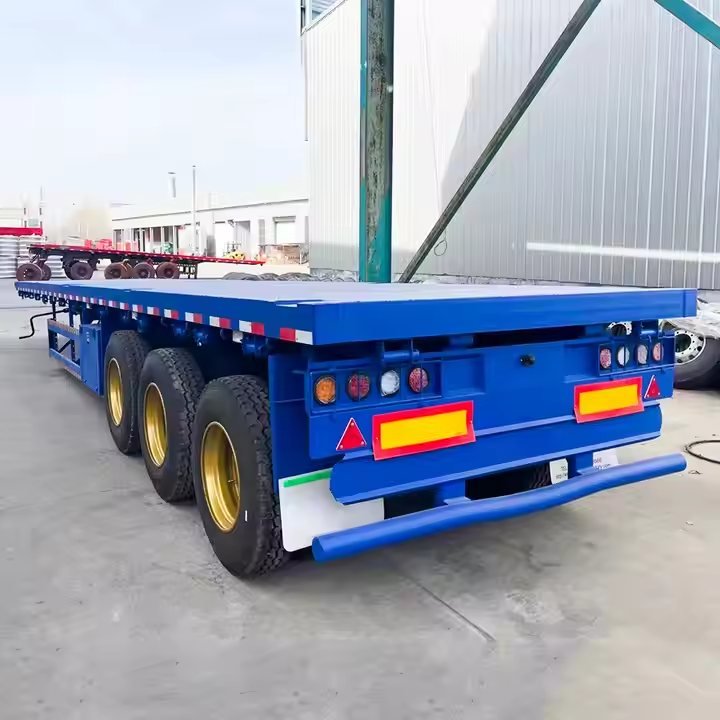

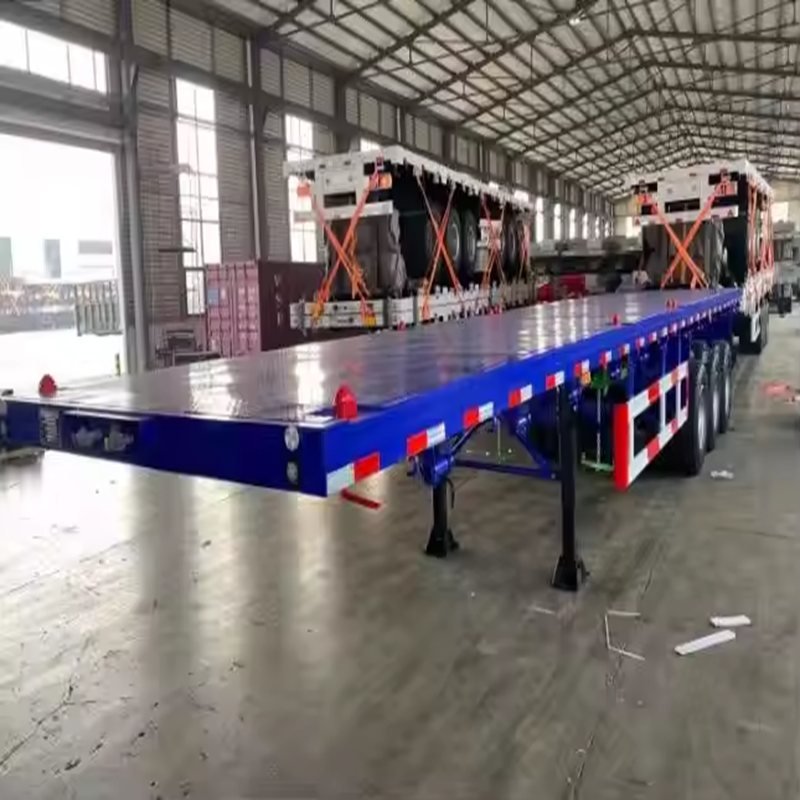

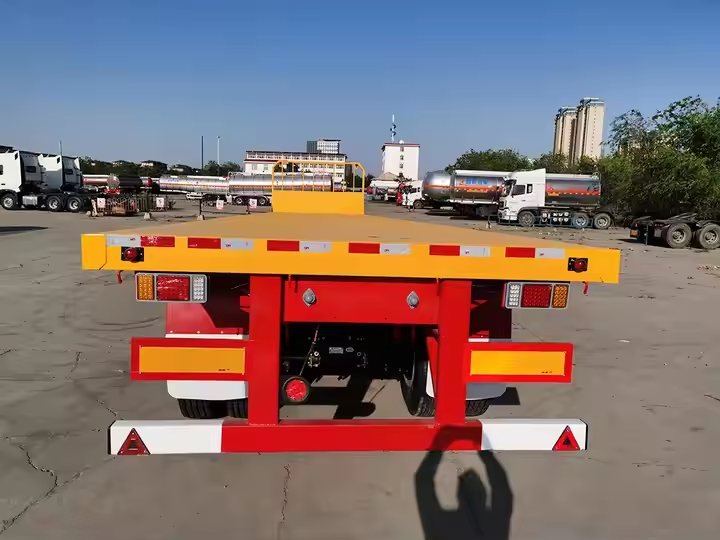

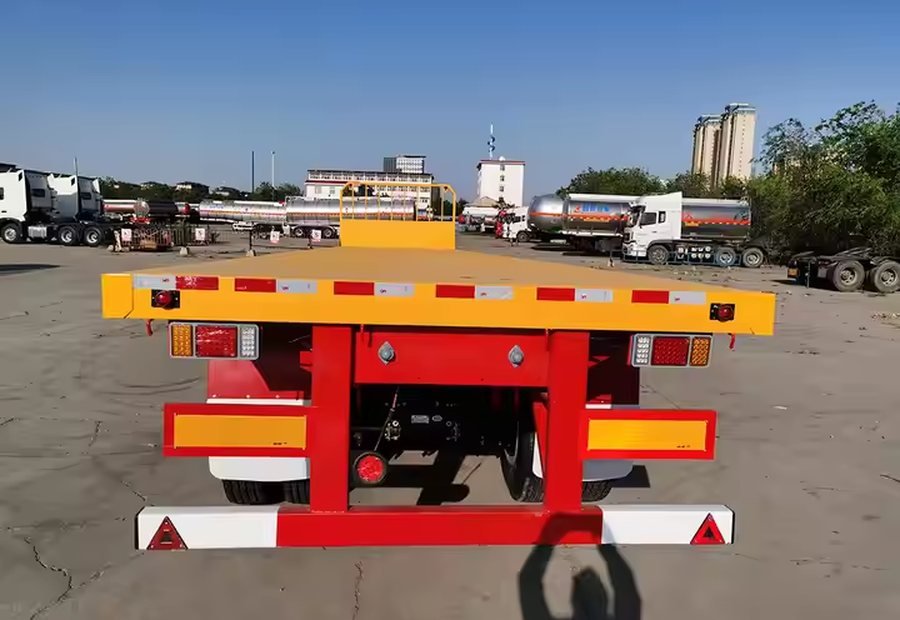

The universal container and general cargo trailer: 40 ft platform, Q345B I-beam frame and 13 T axles.
| Type | Flatbed semi trailer |
|---|---|
| Length | 12,500 – 13,000 mm |
| Width | 2,500 mm |
| Platform height | 1,500 mm |
| Frame | Q345B, 500 mm I-beam, 8 mm web |
| Floor | 3 mm checkered plate |
| Axles | 3 × 13 T FUWA / BPW |
| Suspension | Mechanical or air suspension |
Extended four-axle platform for heavier general cargo and long steel sections, with reinforced cross members.
| Type | Flatbed semi trailer |
|---|---|
| Length | 13,000 – 16,000 mm |
| Frame | Q345B, 550 mm I-beam |
| Floor | 3 – 4 mm checkered plate |
| Axles | 4 × 13 T FUWA / BPW |
| Suspension | Mechanical leaf spring |
| Landing gear | 28 T |
| King pin | 3.5" bolted |

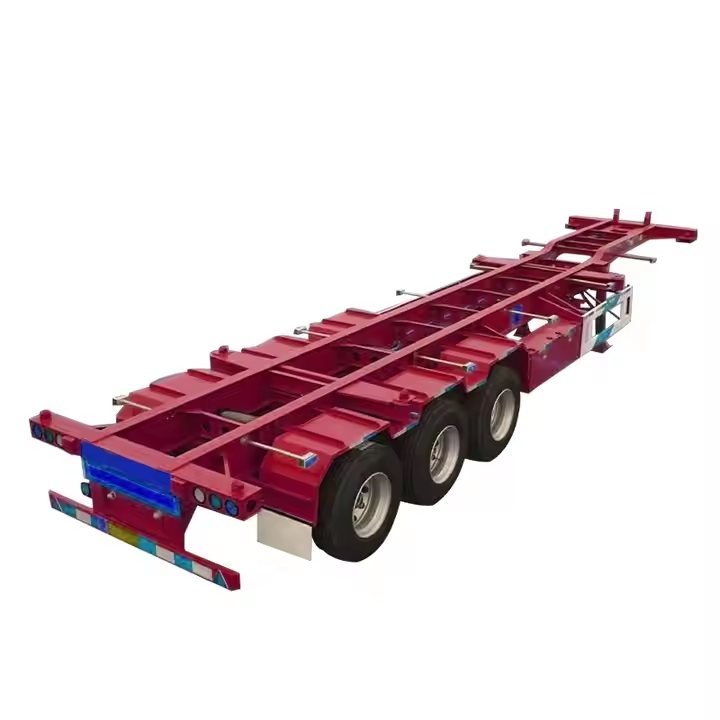

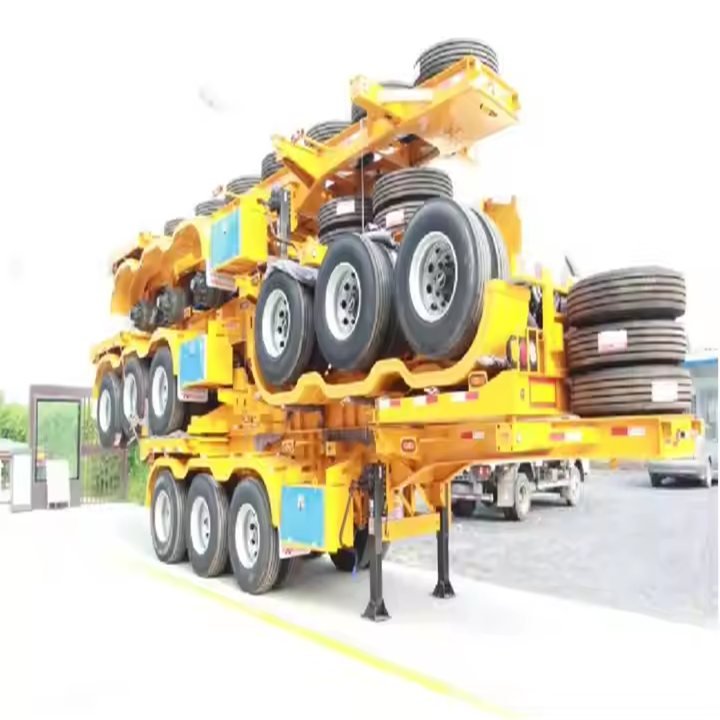

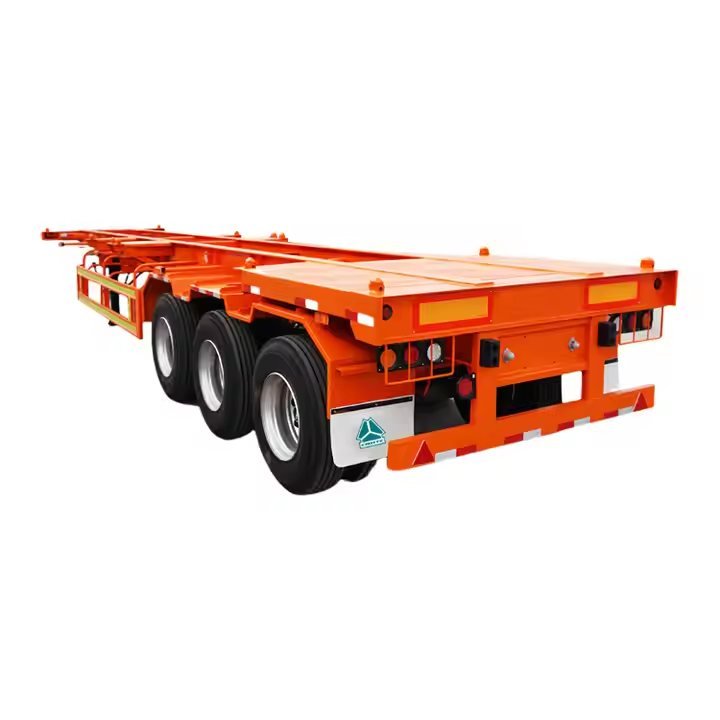

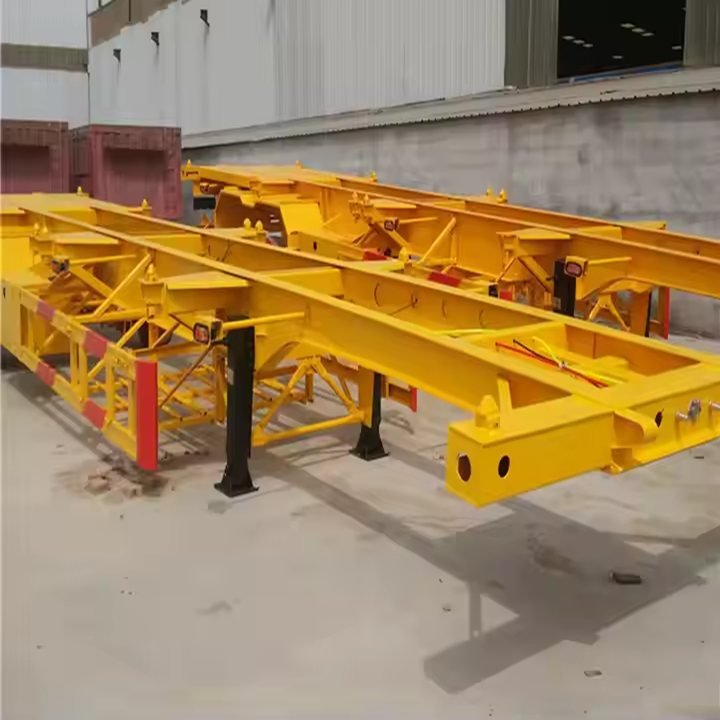

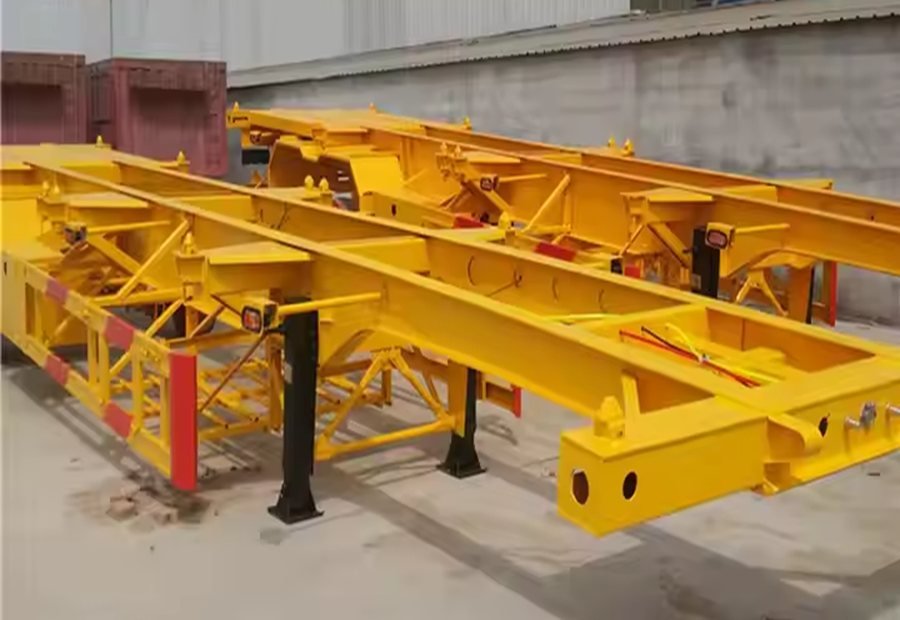

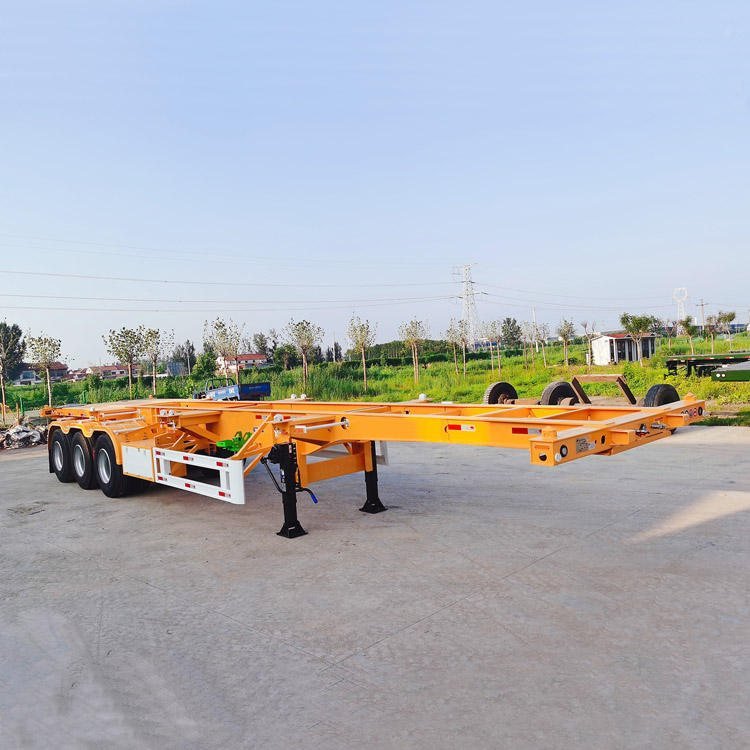

Lightweight skeletal chassis purpose-built for 20 ft and 40 ft ISO containers, with a gooseneck front section.
| Type | Skeletal container trailer |
|---|---|
| Container size | 1 × 40 ft or 2 × 20 ft |
| Length | 12,400 mm |
| Frame | Q345B, 400 mm I-beam |
| Tare weight | 5,200 kg |
| Axles | 3 × 13 T |
| Suspension | Mechanical leaf spring |
| Landing gear | 28 T |

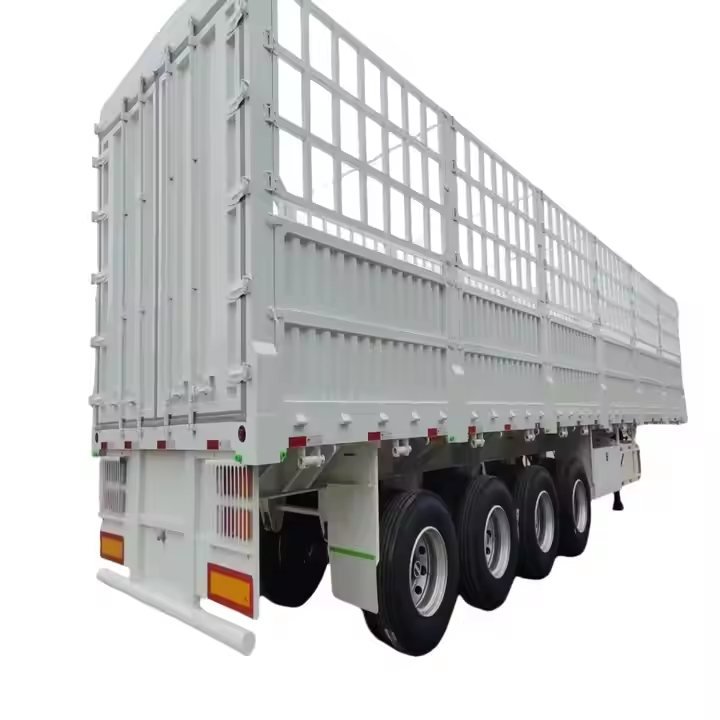

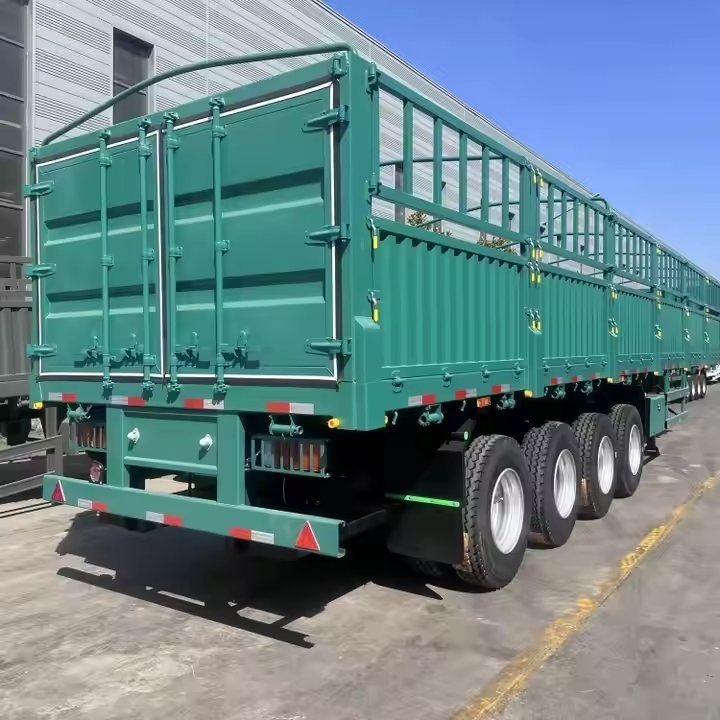

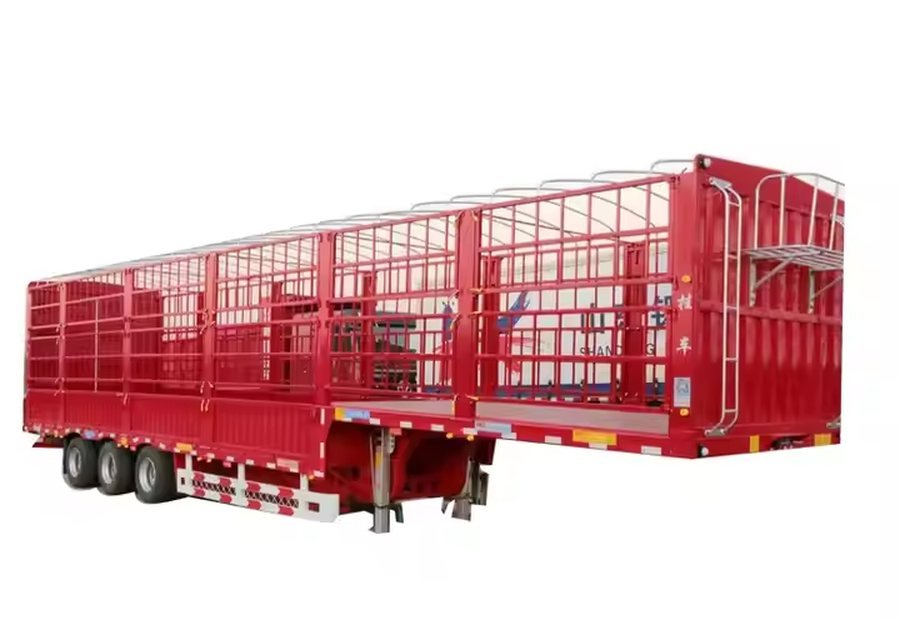

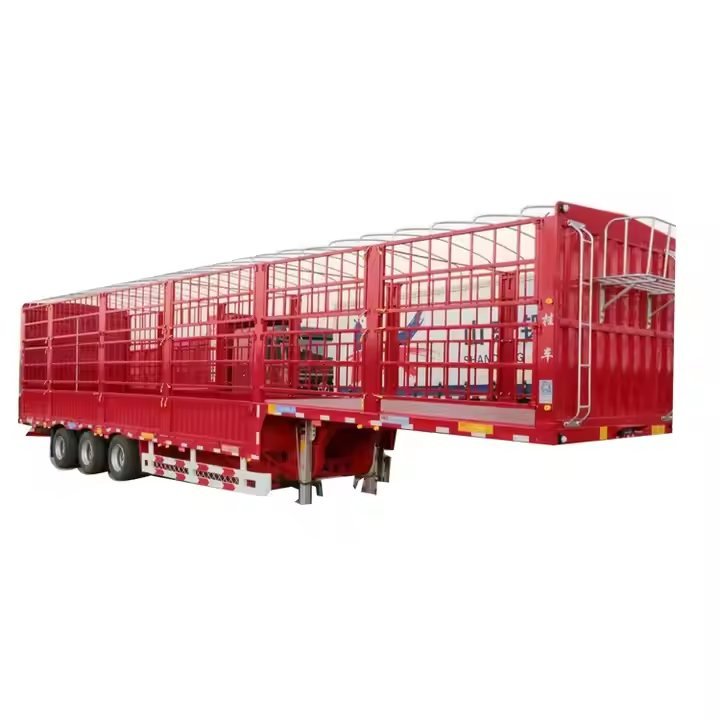

Sidewall trailer with removable boards and a full-height stake cage for grain, livestock, timber and bulk cargo.
| Type | Sidewall semi trailer |
|---|---|
| Length | 12,500 mm |
| Side height | 1,500 – 2,500 mm, 4 – 6 boards |
| Frame | Q345B I-beam |
| Floor | 3 mm checkered plate |
| Side boards | Corrugated steel, removable |
| Axles | 3 × 13 T |
| Suspension | Mechanical or air |
Click any photo to open it full size.
We manufacture in our own plant in Liangshan, so you buy at factory cost with no trading margin in between.
WMI code LA9/CRD, registered manufacturer code, ISO quality system and Intertek verified supplier certification.
Container stuffing, RoRo booking, CO, Form A, inspection certificates and full customs paperwork handled in-house.
A dedicated spare parts warehouse keeps axles, brake chambers, valves and lamps on the shelf for fast dispatch.
