Rotary drum drying lines

Drying Equipment

A dryer is a heat transfer calculation wrapped in steel: the drum diameter, the flight design, the air velocity and the furnace output all have to be sized together for the moisture reduction you need.

Capacity calculated from your moisture data — We size the drum from the inlet moisture, target outlet moisture and hourly throughput you give us.
Multiple heat source options — Coal, natural gas, diesel, biomass, waste heat or steam, chosen for your local fuel cost.
Complete dust and emission control — Cyclone separator plus bag filter or wet scrubber to meet local emission limits.
Turnkey supply including installation — Feeder, crusher, dryer, furnace, conveyors, silo and control system, with engineer dispatch for commissioning.

Request a quotation WhatsApp us

Models & Specifications

Drying Equipment Range

Specifications below are our standard build. Engine, axle ratio, body size, colour and drive side can all be changed — tell us what you need.

7.5 – 75 kW · 1 – 50 T/h

Rotary Drum Dryer

Single or triple pass rotary dryer with a lifting-flight drum, biomass furnace and cyclone dust collector.

7.5 – 75 kW 1 – 50 T/h 12 Month Warranty

Rotary Drum Dryer — key specifications
Type	Rotary drum dryer
Capacity	1 – 50 t/h
Drum diameter	1,200 – 3,200 mm
Drum length	6,000 – 25,000 mm
Inlet moisture	≤ 45 %
Outlet moisture	≤ 5 % (adjustable)
Heat source	Coal, gas, oil, biomass, steam
Drive	Gear ring with variable speed motor

Get a quote See more photos

Custom · 5 – 100 T/h

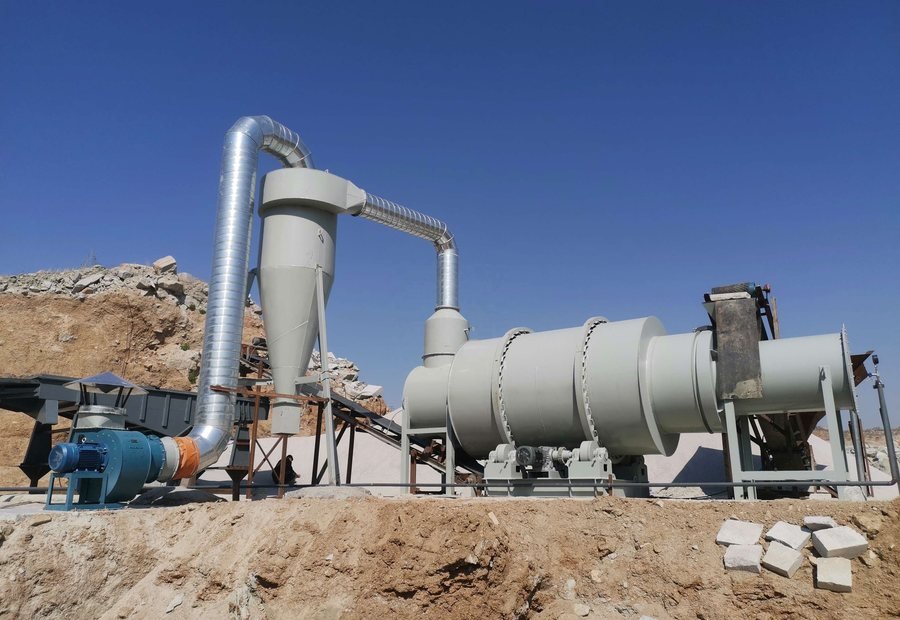

Complete Drying Line

Turnkey drying plant including feeder, crusher, dryer, combustion chamber, cyclone, conveyor and packing section.

Custom 5 – 100 T/h 12 Month Warranty

Complete Drying Line — key specifications
Scope	Turnkey drying plant
Capacity	5 – 100 t/h
Components	Feeder, crusher, dryer, furnace, cyclone, conveyor, silo
Material	Sand, sawdust, coal slime, chicken manure, fertiliser, gypsum
Layout	Site-specific 3D drawing supplied
Fabrication	Workshop pre-assembly and trial run
Steel	Q235B / 16 Mn
Insulation	Rock wool with steel cladding

Get a quote See more photos

Gallery

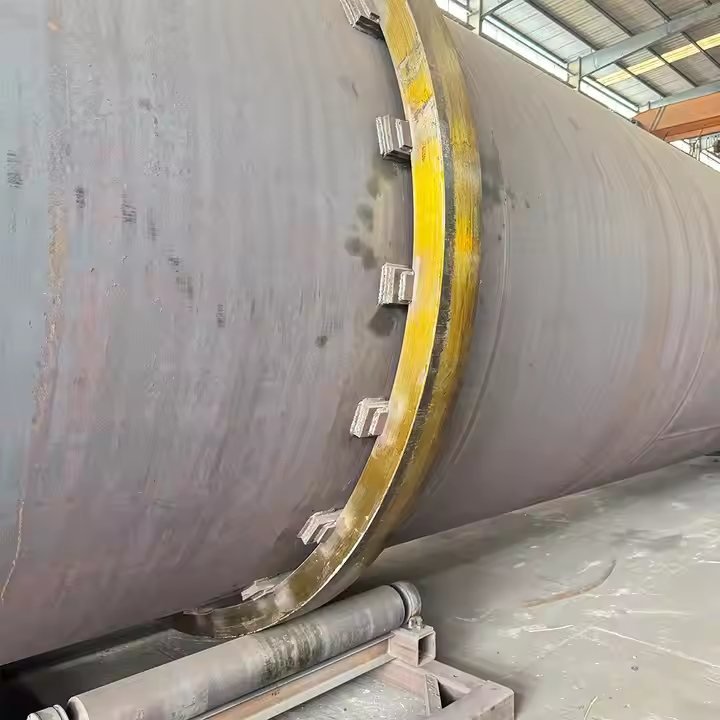

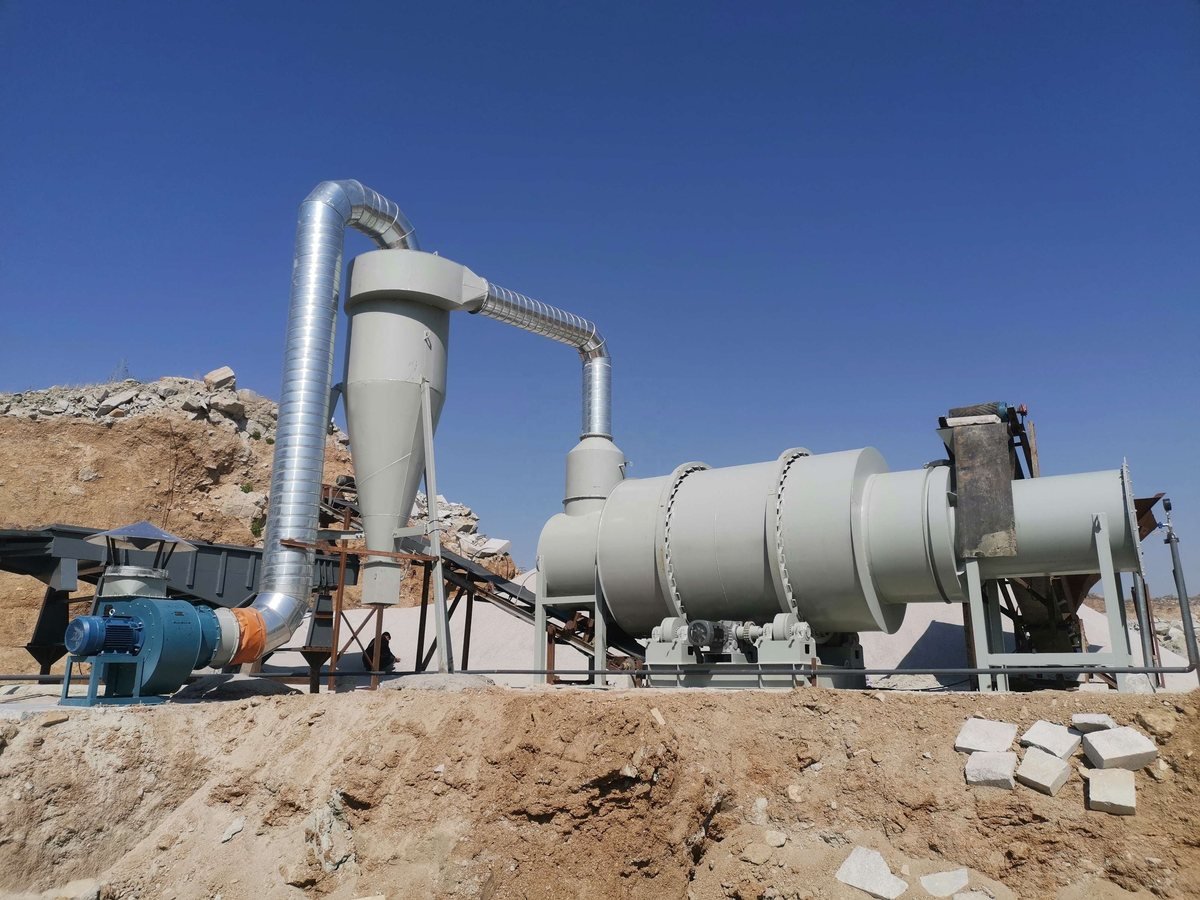

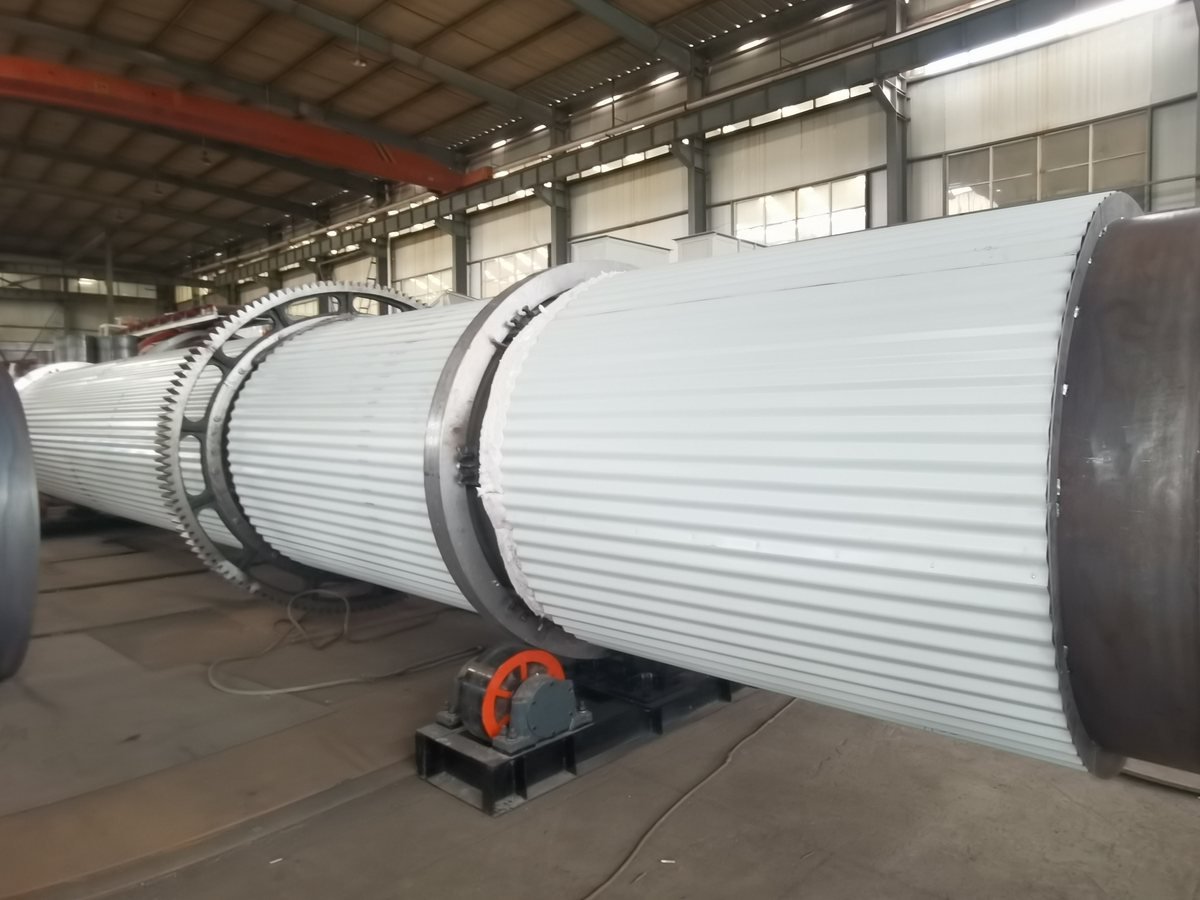

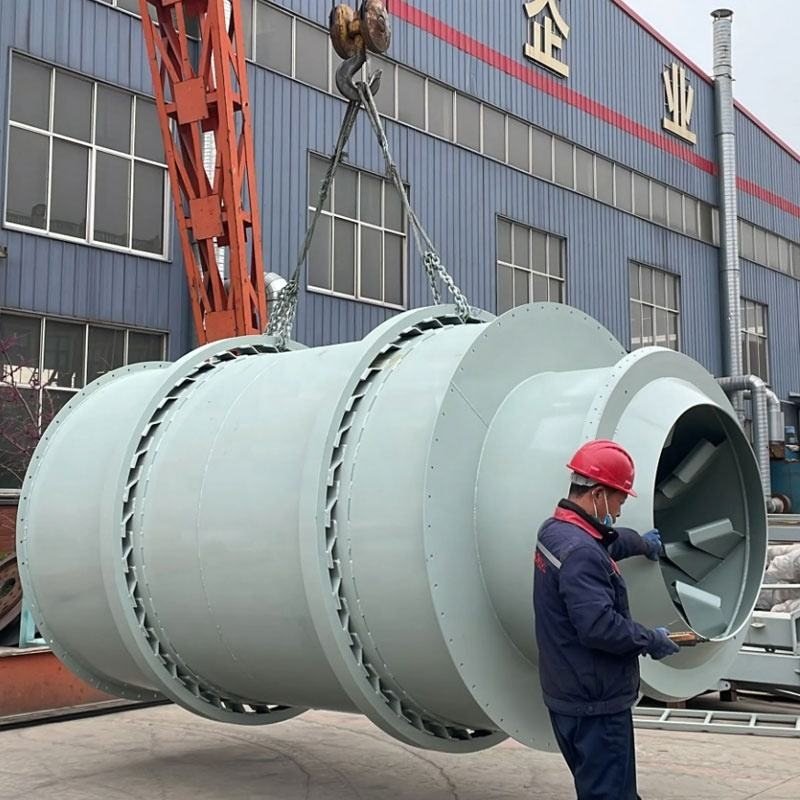

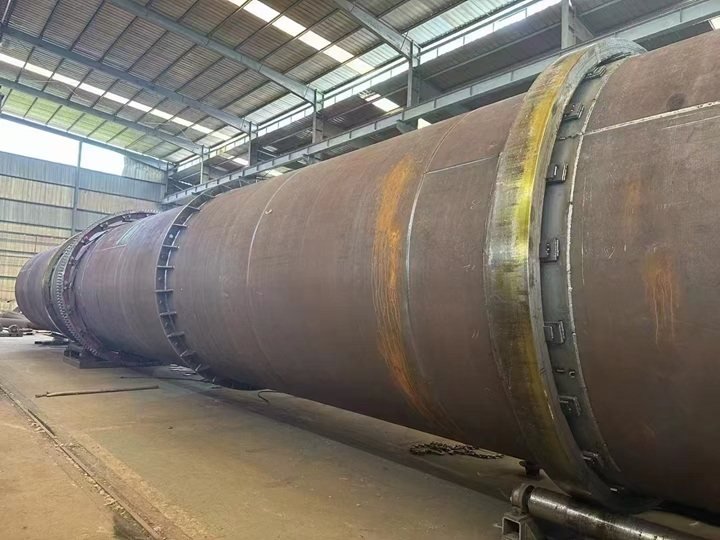

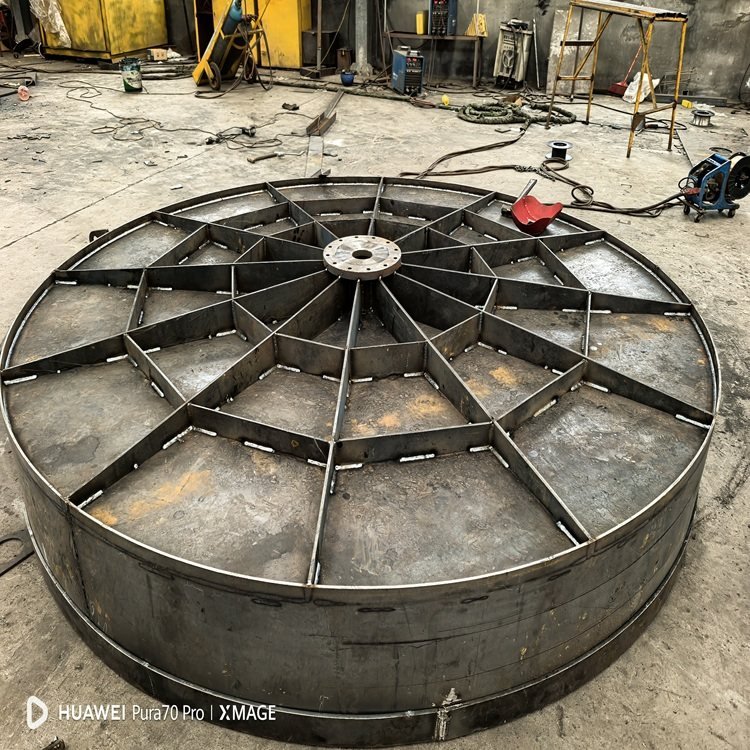

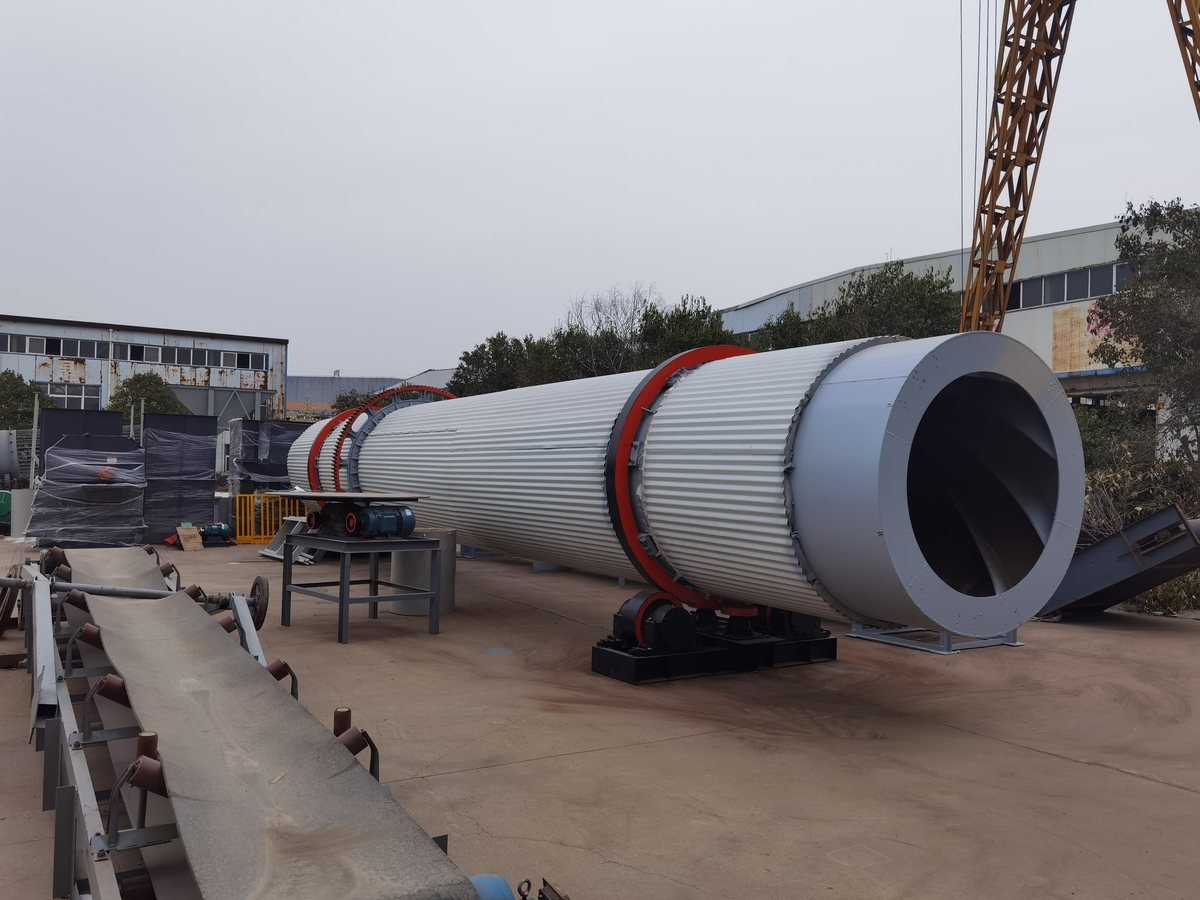

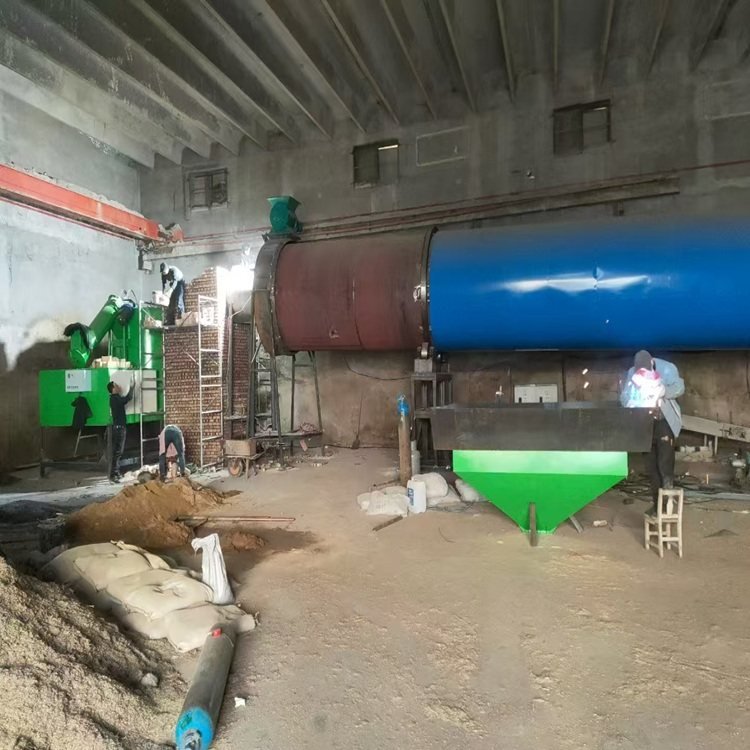

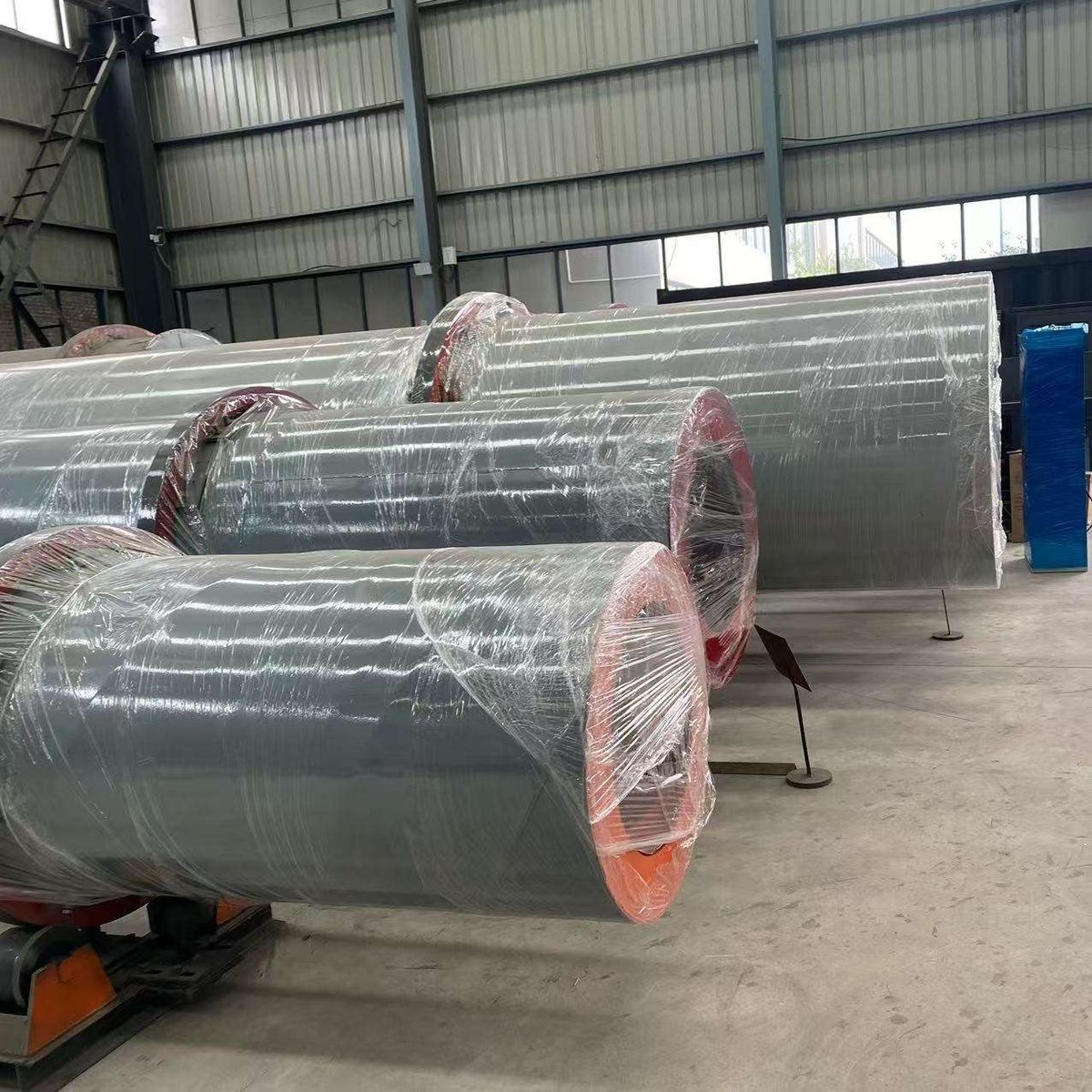

Drying Equipment in Production and Delivery

Click any photo to open it full size.

Factory Direct Pricing

We manufacture in our own plant in Liangshan, so you buy at factory cost with no trading margin in between.

Certified Quality System

WMI code LA9/CRD, registered manufacturer code, ISO quality system and Intertek verified supplier certification.

Export Documentation

Container stuffing, RoRo booking, CO, Form A, inspection certificates and full customs paperwork handled in-house.

After-Sales Parts Supply

A dedicated spare parts warehouse keeps axles, brake chambers, valves and lamps on the shelf for fast dispatch.

Frequently Asked

Drying Equipment Questions

Tell us the material, the inlet moisture percentage and the target outlet moisture, plus the tonnes per hour you want. We will calculate the drum size and the furnace duty.

For a coal-fired unit, budget around 2 kg of coal per tonne of output at typical sand drying duty. Gas and biomass figures are supplied with the quotation.

Yes. If you have waste heat from a kiln, a generator or a boiler we can design the dryer around it, which removes most of the fuel cost.

We supply single units for trial orders and full container loads for fleet buyers. Mixed orders are welcome — for example one tractor truck together with trailer axles and spare parts in the same shipment. For spare parts the typical MOQ is 10 to 20 pieces.

Yes. Almost every truck in our range can be supplied in either left hand drive or right hand drive, and we build to the emission standard required by your market — Euro II, Euro III, Euro V or local equivalents.
