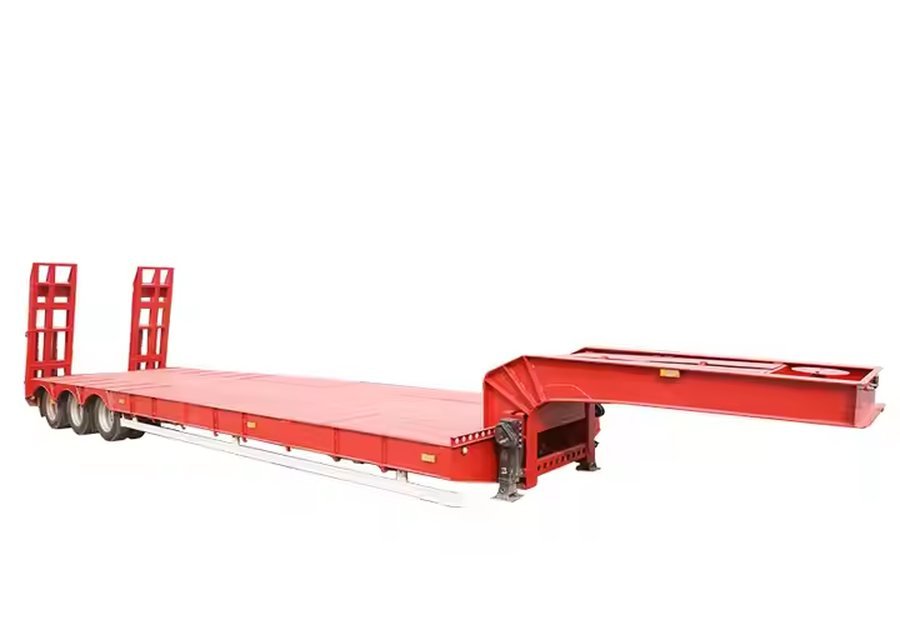

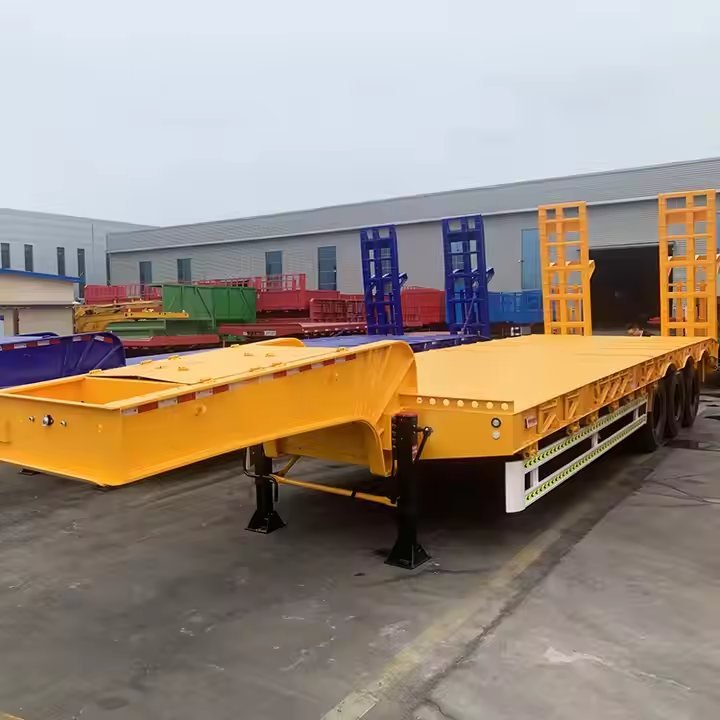

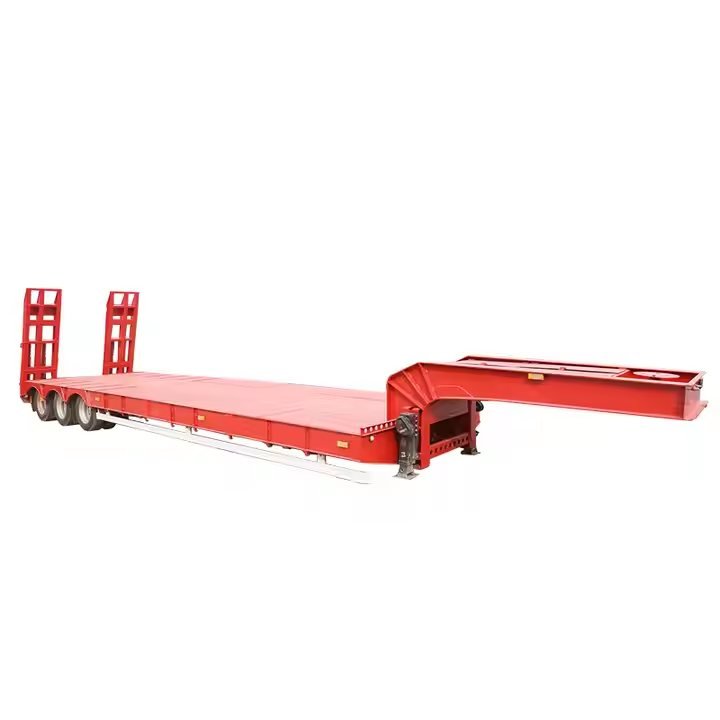

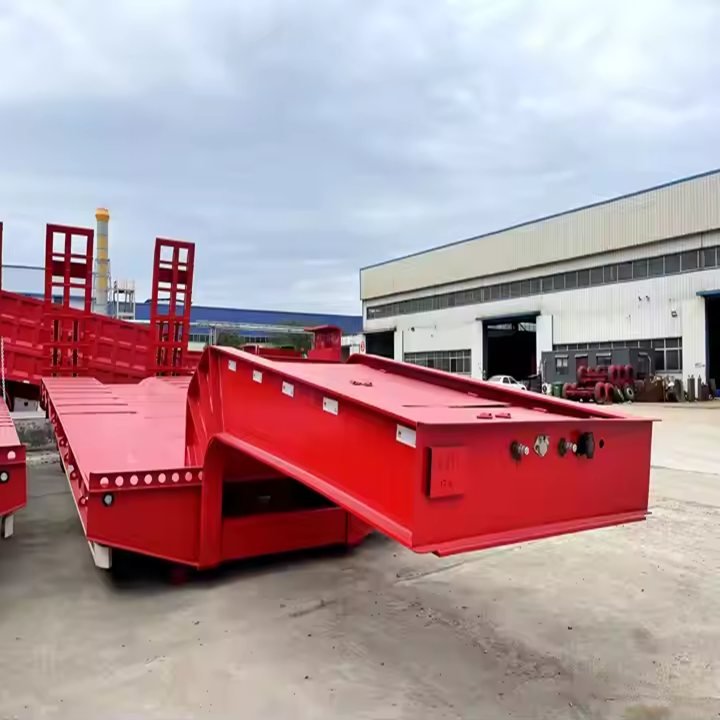

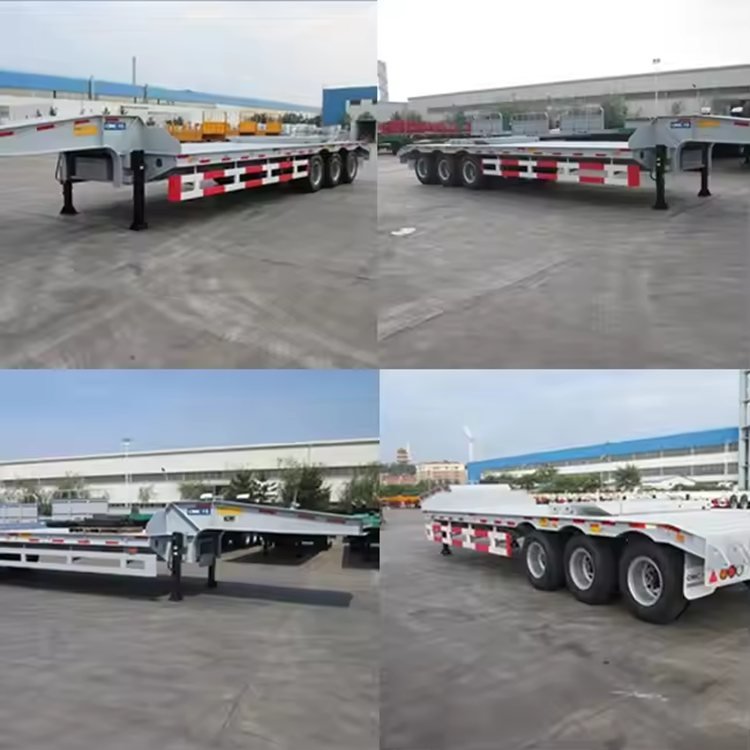

Standard lowbed trailer for excavators and dozers, with a 900 mm deck, spring ramps and a strong Q345B frame.
Standard build shown. Every parameter can be changed to suit your market and your cargo.
| Type | Lowbed semi trailer |
|---|---|
| Capacity | 60 Ton |
| Length | 13,000 mm |
| Deck height | 900 mm |
| Deck length | 9,000 mm |
| Width | 3,000 mm (extendable to 3,400) |
| Frame | Q345B, 500 mm I-beam |
| Axles | 3 × 13 T FUWA / BPW |
| Suspension | Mechanical leaf spring |
| Ramps | Spring assisted, 2 pcs |
| Tyre | 12R22.5, 12 pcs |
| King pin | 3.5" |
A low deck that keeps the overall travel height within permit limits for tall machines.
Long enough for a 20 tonne excavator with the boom folded, with 3,000 mm width extendable to 3,400 mm.

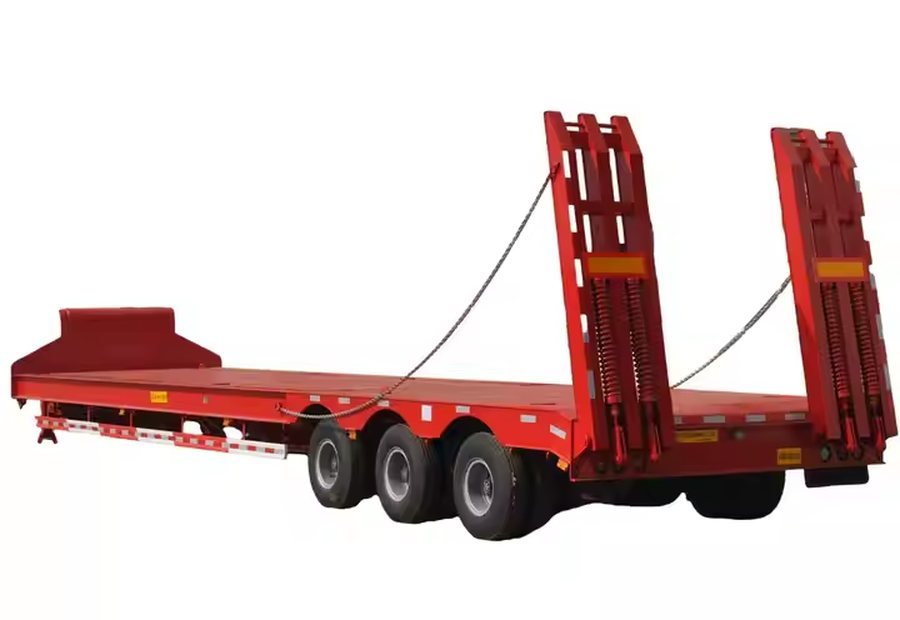

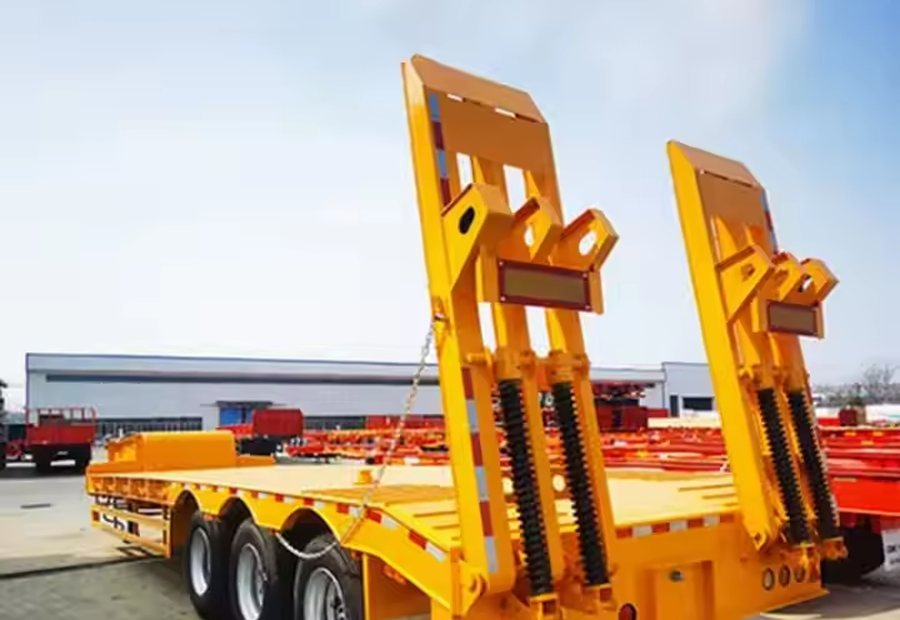

Two ramps with spring counterbalance so one operator can raise and lower them safely.
A fully welded frame with extra cross members under the deck load zone.
FUWA or BPW axles with heavy duty leaf spring suspension rated for 60 tonnes.
Anti-slip deck coating, reflective side markers and a 24 V LED lighting set.
We handle the whole export chain in-house: waxing and protection, container stuffing or RoRo booking, lashing and surveying, and every document your customs broker will ask for.
Send us the specification, the quantity and your destination port. Our engineers reply with a quotation, a production schedule and a shipping option within 24 hours.
Quanpu Industrial Park, 220 National Road South, Liangshan County, Jining City, Shandong Province, China
Send us your requirement today and we will come back with a factory price and a delivery date.
